Brand: ACL Race Series Performance Engine Bearings
Manufacturer's Part Number: 4B1568HX-STD
Part Type: Rod Bearings
Product Line: ACL Performance Race Series Rod Bearing Sets
Automotive Fittings Part Number: PEB-4B1568HX-STD
UPC: 9315726439067
Bearing Usage: Performance
Engine Crankshaft Undersize (in.): Stock
Engine Crankshaft Undersize (mm): Stock
Bearing Material: Tri-metal copper-lead alloy
Dowel Pin Hole: No
Narrow Bearing: No
Quantity: Sold as a set of 4.
Notes: Tri-Metal - Standard Size with .0005 in. thinner wall bearing for .001 in. extra oil clearance.
Description:

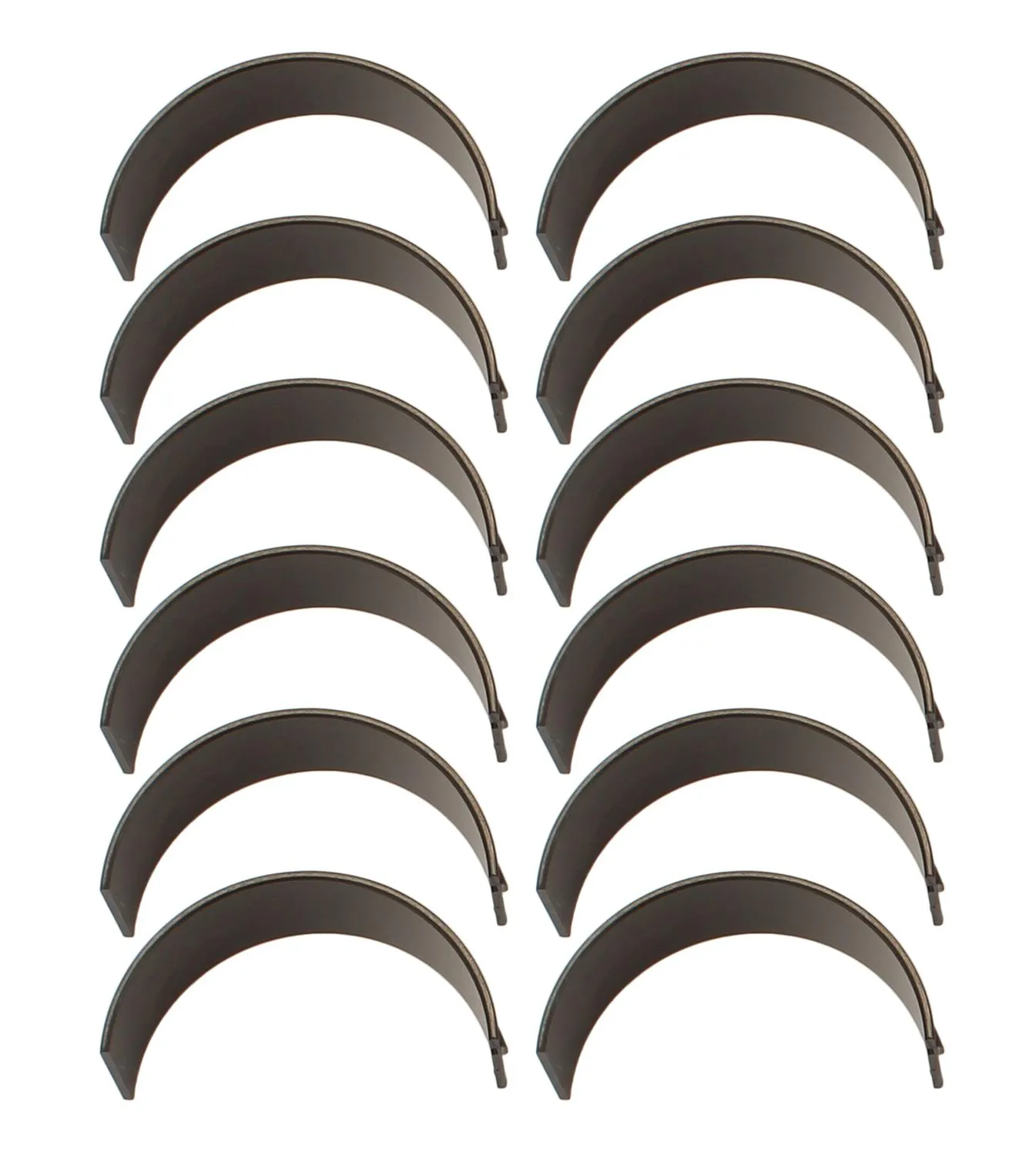

ACL Performance offers Race Series rod bearing sets for a wide range of vehicles. These high performance tri-metal engine bearings are designed to withstand higher RPM conditions. They feature a high-strength overlay plate with reduced thickness for improved fatigue properties. Select the crankshaft undersize and quantity recommended for your year/make and engine application.

Additional details:

* Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
* Increased crush for improved bearing retention
* Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing
* Increased eccentricity to compensate for bore distortion at high RPM and to assist in the formation of hydrodynamic oil films
* 3/4 in. grooved main bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings
* Tight consistent wall tolerances to help you maintain consistent clearances
* Enlarged ID chamfers on bearing edges (where required) to accommodate large fillet radius on performance crankshafts
