GReddy RB26 Piping Set for Surge Tank 100mm
Product composition
100Φ set
●Aluminum pipe 100Φ 1 piece
●Aluminum elbow 90° 1 piece
●Silicon hose 100Φ 2 pieces
●Hose band #64 6 pieces
[Compatible models] Nissan / Skyline GT-R
Vehicle model: E-BNR32
Engine model: RB26DETT
Model year: 1989.08 - 1994.12
GReddy Surge RB26 Piping Set 100Φ
TRUST CODE: 13920403
| size | Compatible intercooler | ||
| 80Φ set | GReddy IC KIT Skyline GT-R T-23F (12020208) | GReddy IC KIT Skyline GT-R T-24F (12020223) | GReddy IC KIT BNR32 T-29F (12020214) |
| 100Φ set | GReddy IC KIT BNR32 T-29F for surge (12020215) | ||
Product features

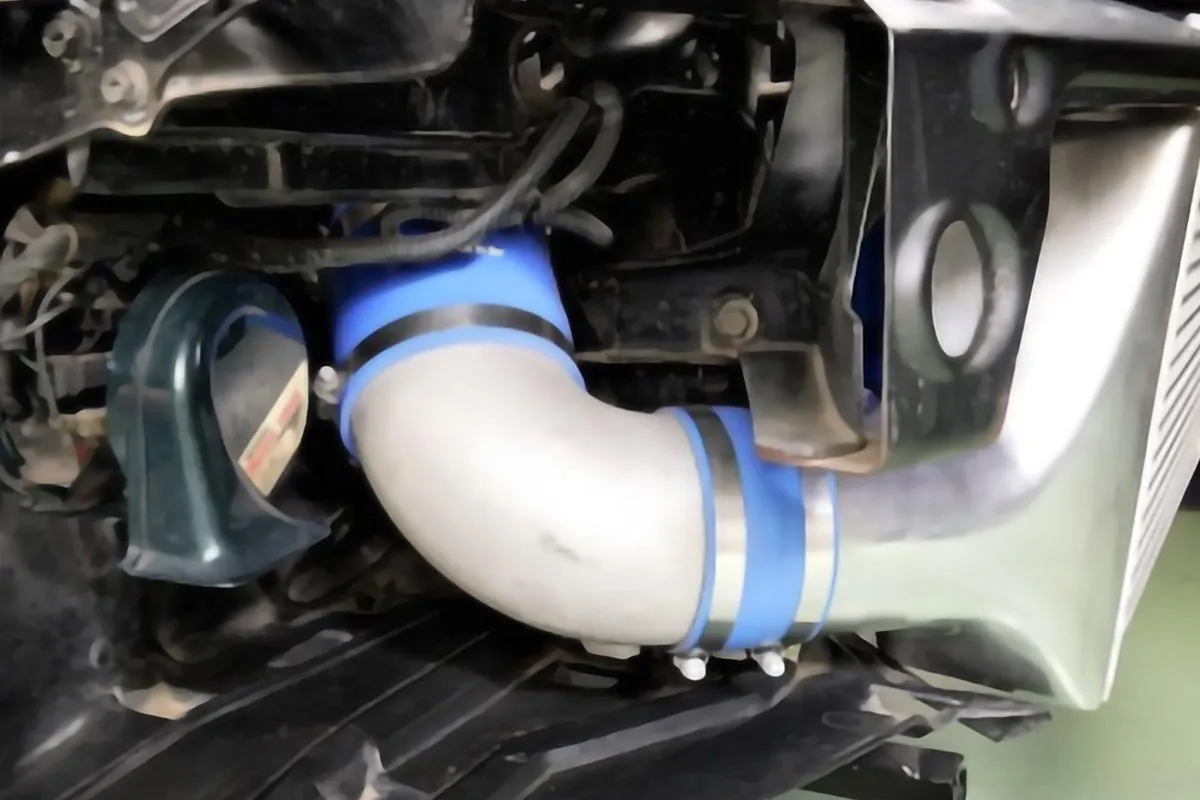

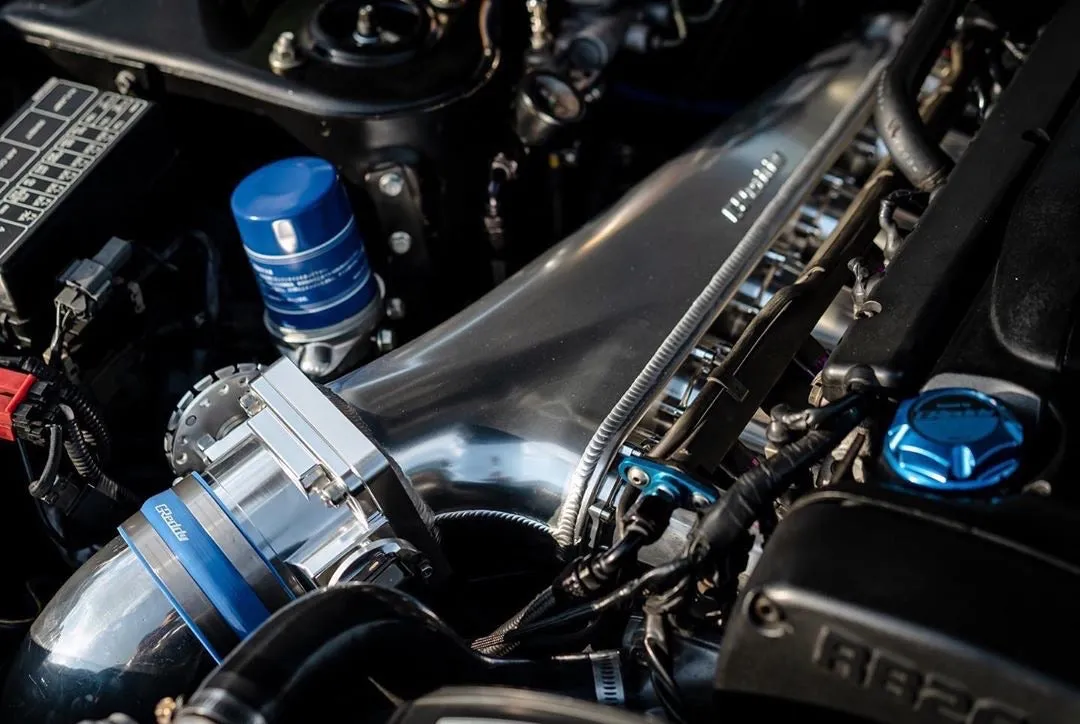

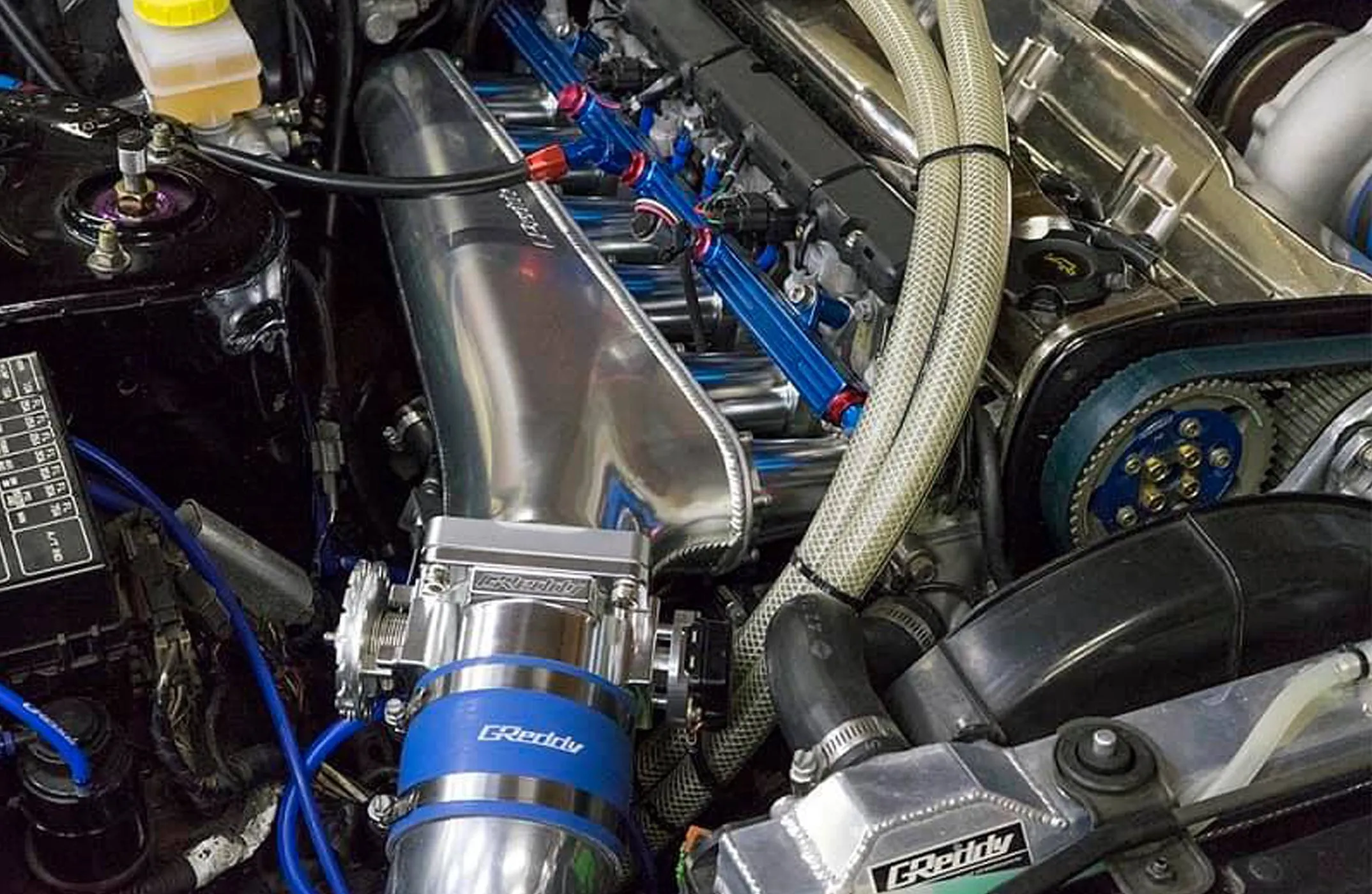

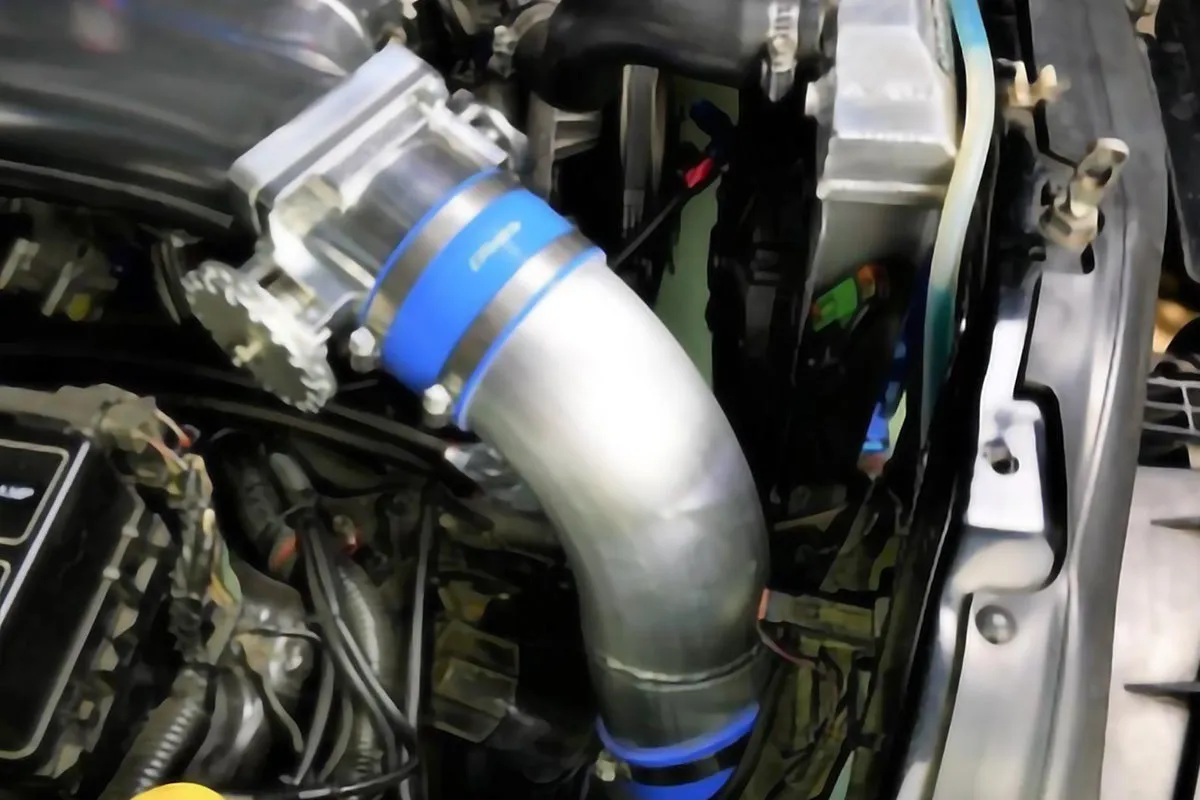

●This is an aluminum buffed piping set from the intercooler outlet to the surge tank, which is required when replacing the GReddy surge tank where the throttle mounting position will be changed.
●Exclusive design allows for shorter work.
Specification
●Surge tank for single throttle only ()
●Battery transfer required
●Body modification required
